Antenna Measurement

Measuring Antennas with Precision

Antenna characterization requires controlled measurement conditions, accurate positioning and reliable RF instrumentation. Magnetron Systems provides antenna measurement solutions combining the measurement environment, positioning, RF equipment and software required to obtain meaningful and repeatable antenna performance data.

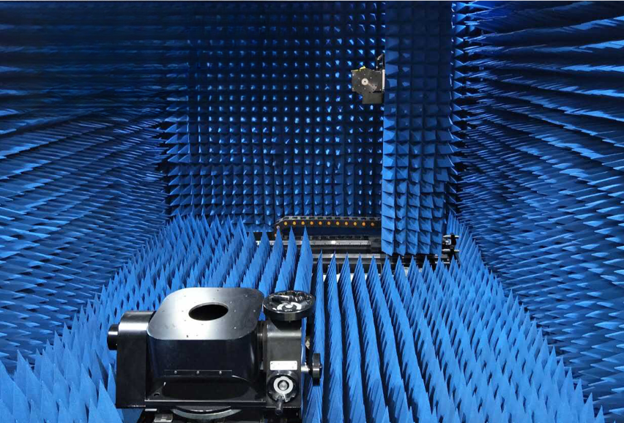

  1. Near-Field / Direct Far-Field (FF) Measurement / Near-Field to Far-Field Transformation (NF-FF)
    1. 2D/3D radiation pattern
    2. Gain
    3. Directivity
    4.  Beamwidth
    5. Sidelobes
    6. Front-to-back ratio
    7. Polarization
    8.  Cross-polarization
  1. Compact Antenna Test Range (CATR)
    1.  radiation pattern
    2.  Gain
    3. Sidelobes
    4. Front-to-back ratio
    5. Polarization
  1. Spherical Near-Field (SNF)
    1.  Full 3D radiation pattern
    2. Gain/directivity
    3. Polarization
    4. Near-field distribution
    5. Far-field pattern
  1. Planar Near-Field (PNF)
    1.  Radar antennas
    2.  Phased arrays
    3.  Satellite antennas
    4.  Large aperture antennas
    5.  High-frequency antennas
  1. Multi-probe spherical Near-Field
    1.  Production testing
    2.  Automotive radar
    3.  5G/6G
    4.  Large antenna arrays
    5.  OTA testing
From antenna characterization to complete measurement environments.
