EMC & Compliance
Test with Confidence. Design for Compliance.
EMC testing requires more than individual instruments — it requires the right combination of measurement equipment, RF infrastructure and test environment. Magnetron Systems provides solutions for emissions, immunity and compliance testing, configured around applicable standards and the specific requirements of the application.
Solutions for EMC testing, from pre-compliance to advanced compliance environments.

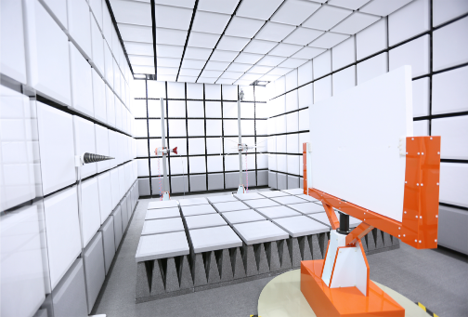

Full Anechoic Chamber / Room (FAC / FAR)
The 3m Full Anechoic Chamber is designed to conduct comprehensive compliance measurements of radiated emissions and immunity at a 3-meter testing distance. This versatile EMC test facility is utilized for both commercial and telecommunications testing. The chamber features a robust construction, including a 2mm galvanized pan-type panel system, parallel-closing RF shielded doors, and polystyrene hybrid absorbers on the walls, floor, and ceiling. These elements work together to create a high-performance, controlled electromagnetic environment that meets international standards for immunity and emission testing.
Product Description
The main purpose of a full anechoic chamber is to perform full compliance measurements of radiated emission and immunity at 3m test distance. The full anechoic chamber is a multi-functional EMC test facility for commercial and telecom testing. The combination of the pan-type 2mm galvanized panel system, parallel closing RF shielded doors and polystyrene hybrid absorbers on the walls, floor and ceiling creates a high performance controlled electromagnetic environment that complies with international immunity and emission test standards.
Features of a 3m full anechoic chamber:
Full compliance emission test site for frequency range of 30MHz to 18GHz as per CISPR 16-1-4 (2010) +annex A1 (2012) (free space testing)
Full compliance immunity test site for frequency range of 80MHz to 6GHz as per IEC/EN 61000-4-3
Shielding effectiveness according to EN 50147-1 (>80dB at 10kHz)
Acceptance standards for a 3m full anechoic chamber:
CISPR 16-1-4
IEC/EN 61000-4-3
EN 50147-1
ANSI C63.4
Product standards for a 3m full anechoic chamber:
CISPR 32
CISPR 35
CISPR 11
CISPR 14
CISPR 15
Typical performance of a 3m full anechoic chamber:
FSNSA: +/-3.5dB at 3m test distance
sVSWR: ≤ 5.5dB at 3m test distance
FU: 75% of 16 points ≤ 6dB at 3m test distance & 1.5*1.5m test window (0.8m above floor level)
Typical specifications for a 3m full anechoic chamber:
External dimensions | 8.8m*5.8m*4.8m（L*W*H） |
Dimensions | 8.2m*5.2m*4.2m（L*W*H） |
Control room dimensions | 4.0m*4.0m*3.0m（L*W*H） |
Amplifier room dimensions | 4.0m*2.1m*3.0m（L*W*H） |
Construction | 2mm galvanized shielding panels with a free-standing structural steel support |
Absorbers | Hybrid solution of ferrite tiles and polystyrene hybrid absorber on walls, floor and ceiling |
Ventilation | 300mm*300mm/18GHz |
Shielded door | RF shielded swing door 1.2m*2.1m (W*H) |
Ground interface board | 400mm*400mm/18GHz, including RF connectors |
EUT power line | Filtered 220V 32A 50Hz/60Hz; 380V 63A 50Hz/60Hz |
Lighting | Interference-free LED automatic lifting and lighting system |
Frequency range | 30MHz to 18GHz for radiated emission and 80MHz to 6GHz for radiated immunity |
Quiet zone size | Diameter 1.5m, height 1.5m |
Floor | Ferrite tiles and hybrid absorbers incl. a walk way solution. |
Positioning system | Optical fiber control turntable, turntable diameter 2m;Optical fiber control antenna tower, 1-3m lifting. |
In addition to the typical specifications of an anechoic chamber, we can also customize the anechoic chamber configuration for customers according to the size of quiet zone and the type of test standard.

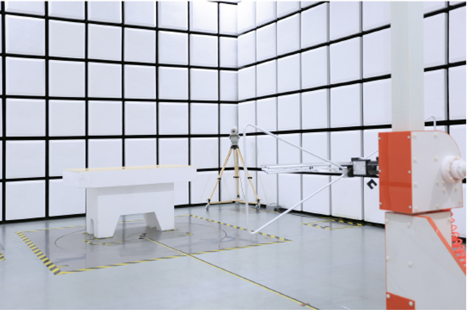

3m / 5m Semi Anechoic Chamber (3m/5m SAC)
The 3m/5m Semi Anechoic Chamber is designed to conduct comprehensive compliance measurements of radiated emissions and immunity at both 3-meter and 1-meter testing distances and at 5-meter for 5m SAC. The chamber features a robust construction that includes a 2mm galvanized pan-type panel system, parallel-closing RF shielded doors, and polystyrene hybrid absorbers on the walls, floor, and ceiling. These elements collaborate to create a high-performance, controlled electromagnetic environment that adheres to international standards for immunity and emission testing. The 3m Semi Anechoic Chamber is suitable for a wide range of EMC testing for commercial, military, and automotive products.
Product Description
The main purpose of a 3m/5m semi anechoic chamber is to perform full compliance measurements of radiated emission and immunity at 5m, 3m or 1m test distance depending upon the chamber size. The combination of the pan-type 2mm galvanized panel system, parallel closing RF shielded doors and polystyrene hybrid absorbers on the walls, floor and ceiling creates a high performance controlled electromagnetic environment that complies with international immunity and emission test standards. The 3m semi anechoic chamber meets most EMC testing of commercial, military and automotive products whereas the 5m semi anechoic chamber is used for larger EUTs etc.
Features of a 3m/5m semi anechoic chamber:
Full compliance emission test site for frequency range of 30MHz to 18GHz as per CISPR 16-1-4 (2010) +annex A1 (2012) (free space testing)
Full compliance immunity test site for frequency range of 80MHz to 6GHz as per IEC/EN 61000-4-3
Shielding effectiveness according to EN 50147-1 (>80dB at 10kHz)
Acceptance standards for a 3m semi anechoic chamber:
CISPR 16-1-4
IEC/EN 61000-4-3
EN 50147-1
ANSI C63.4
FCC part15
CISPR 25(special customization)
MIL-STD-461(special customization)
Product standards for a 3m/5m semi anechoic chamber:
CISPR 32
CISPR 35
CISPR 11
CISPR 14
CISPR 15
CISPR 12 (5m)
GB/T18387 (5m)
Typical performance of a 3m/5m semi anechoic chamber:
NSA: +/-3.5dB at 3m test distance and +/-4dB at 5m test distance
sVSWR: ≤ 5.5dB at 3m test distance
FU: 75% of 16 points ≤ 6dB at 3m test distance & 1.5*1.5m test window (0.8m above floor level)
Typical specifications for a 3m semi anechoic chamber:
External dimensions | 3m – 9.7m*6.7m*6.3m（L*W*H） 5m – 12.7m*7.6m*6.6m（L*W*H） |
Dimensions | 3m – 9.1m*6.1m*5.7m（L*W*H） 5m – 12.1m*7.0m*6.0m（L*W*H） |
Control room dimensions | 3m – 4.0m*4.0m*3.0m（L*W*H） 5m – 5.0m*4.0m*3.0m（L*W*H） |
Amplifier room dimensions | 4.0m*2.1m*3.0m（L*W*H） |
Construction | 2mm galvanized shielding panels with a free-standing structural steel support |
Absorbers | Hybrid solution of ferrite tiles and polystyrene hybrid absorber on walls, floor and ceiling |
Ventilation | 300mm*300mm/18GHz |
Shieled door | RF shielded swing door 1.2m*2.1m (W*H) |
Ground interface board | 400mm*400mm/18GHz, including RF connectors |
EUT power line | Filtered 220V 32A 50Hz/60Hz; 380V 63A 50Hz/60Hz |
Lighting | Interference-free LED automatic lifting and lighting system |
Frequency range | 30MHz to 18GHz for radiated emission and 80MHz to 6GHz for radiated immunity |
Test distance | 3m between center of antenna and EUT |
Quiet zone size | Diameter 2m, height 3m |
Floor | Reflective steel floor |
Positioning system | Optical fiber control turntable, turntable diameter 2m;Optical fiber control antenna tower, 1-3m lifting. |
In addition to the typical specifications of 3m/5m semi anechoic chamber, we can also customize the anechoic chamber configuration for customers according to the size of quiet zone and the type of test standard.
Why Magnetron Systems?
Application-driven design
Solutions engineered around your measurement and testing requirements.
High-performance shielding
Materials and construction selected according to the required frequency range and shielding target.
Complete integration
RF shielding, doors, filters, ventilation, grounding and interfaces designed as one system.
Custom engineering
Room dimensions, configuration and performance tailored to your facility.
Testing & Validation
Shielding effectiveness can be verified after installation to ensure the required performance is achieved
